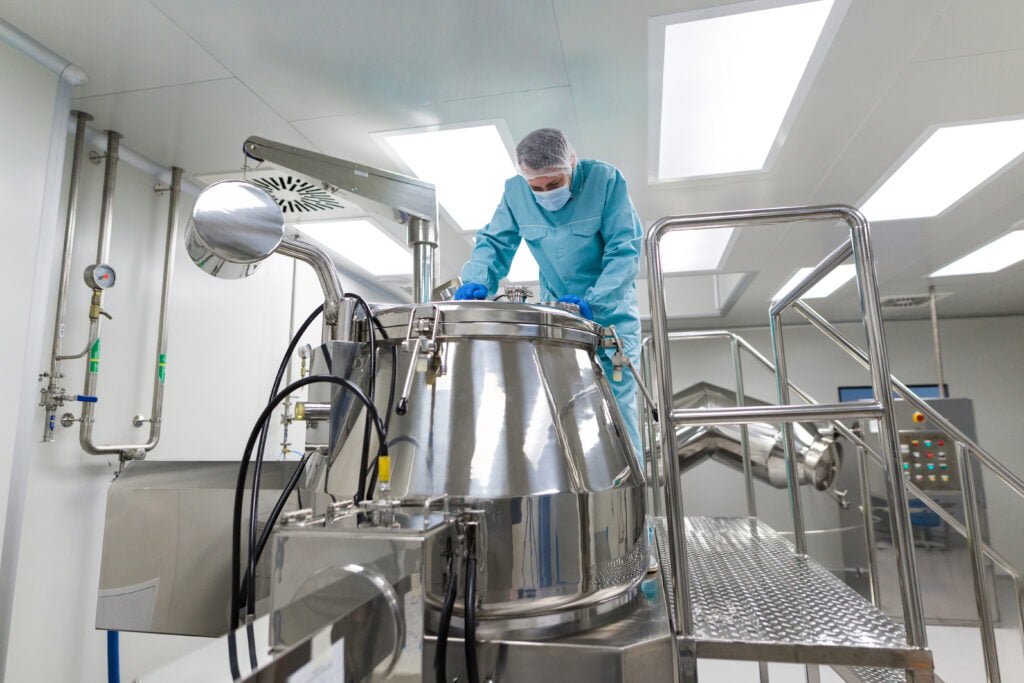

Introduction: Ensuring the cleanliness and hygiene in industrial processes is crucial, especially when the equipment used in the production of food, beverages, pharmaceuticals, and other sensitive products. Cleaning-in-Place (CIP) is a widely used method for effectively cleaning the internal surfaces of fermenters, vessels, pipes, and associated pipelines without the need for dismantling the equipment. This blog post will elaborate the CIP method, the cleaning agents involved, and the step-by-step process for achieving thorough and efficient cleaning.
Cleaning Agents in Cleaning-in-Place (CIP):-
Several cleaning agents play a vital role in the CIP process. Let’s see the commonly used cleaning agents:
- a) Caustic Soda (NaOH): Caustic soda, also known as sodium hydroxide, is one of the primary cleaning agents used in Cleaning-in-Place (CIP). Typically used at concentrations ranging from 0.5% to 2% in volume, caustic soda reacts with fats present in the soil, making them soft and easy to remove. This white solid compound with a molar mass of 39.9971 g/ml is highly soluble in water and quickly absorbs moisture and CO2 from the air. By adding caustic soda to water and heating the solution, it effectively dissolves grease, fats, oils, and protein-based scales. Furthermore, caustic soda is frequently employed in industries to increase the pH of media and act as a buffer.
- b) Phosphoric and Nitric Acid: Phosphoric and nitric acid are acids commonly used in the Cleaning-in-Place (CIP) process. These acids serve to remove mineral and protein precipitates that may remain on the internal surfaces of the equipment after the initial washes. Their presence ensures the cleanliness and integrity of the equipment for subsequent operations.
- c) Sodium Hypochlorite & Peracetic Acid: Sodium hypochlorite and peracetic acid are sometimes used as disinfectants in the Cleaning-in-Place (CIP) process. These substances effectively eliminate microorganisms, ensuring a sanitary environment within the equipment.
- d) Orthophosphoric Acid: Orthophosphoric acid is another acid utilized in Cleaning-in-Place (CIP). It aids in removing mineral and protein deposits from the equipment, contributing to the overall cleanliness of the surfaces.
The CIP process involves several systematic steps to achieve thorough cleaning. Let’s outline the typical steps involved:
- Water Wash: The first step in the Cleaning-in-Place (CIP) process is to give a pre-rinse using purified water (PW) or Water for Injection (WFI). This initial rinse helps remove initial residues from the equipment’s internal surfaces.
- Caustic Wash: In this step, the vessel or equipment is flushed with a caustic solution, typically at ordinary ambient temperature. The caustic solution aids in decomposing proteins present on the surfaces, facilitating their removal.
- Water Wash: Following the caustic wash, the equipment undergoes another rinse with PW or WFI. This step serves to wash away protein residues along with the caustic solution, thoroughly cleaning the internal surfaces.
- Acid Wash: The acid wash step involves the use of acids such as phosphoric or nitric acid to remove any remaining mineral and protein precipitates. This step ensures the removal of stubborn deposits and helps maintain the cleanliness and hygiene of the equipment.
- Water Wash: Finally, the equipment undergoes a final rinse with PW or WFI to flush out any remaining residues from the cleaning agents used in the previous steps. This step ensures the equipment is free from any cleaning agents and ready for subsequent operations.
Conclusion: Cleaning-in-Place (CIP) is a vital process in various industries to ensure equipment cleanliness, remove residues.
FAQs: -
Q1: What is Cleaning-in-Place (CIP)?
A1: Cleaning-in-Place (CIP) is a method used in industries to clean the internal surfaces of equipment, such as fermenters, vessels, pipes, and pipelines, without dismantling the equipment. It involves the use of specific cleaning agents and a systematic process to ensure thorough cleaning.
Q2: Why is CIP important in industrial processes?
A2: CIP is essential in industrial processes to maintain cleanliness, hygiene, and product quality. It helps remove residues, such as fats, oils, proteins, and mineral deposits, from equipment surfaces, preventing cross-contamination, bacterial growth, and product quality issues.
Q3: What are the key cleaning agents used in CIP?
A3: The primary cleaning agents used in CIP include caustic soda (sodium hydroxide), phosphoric and nitric acid, sodium hypochlorite, peracetic acid, and orthophosphoric acid. These agents help dissolve and remove various types of residues and ensure effective cleaning.
Q4: How does caustic soda (sodium hydroxide) work in CIP?
A4: Caustic soda reacts with fats in the soil, making them soft and easy to remove. It is added to water and heated to dissolve grease, fats, oils, and protein-based scales from equipment surfaces. Additionally, caustic soda is used to adjust pH and act as a buffer in industrial processes.
Q6: Can CIP remove all types of residues effectively?
A6: CIP is designed to effectively remove various residues, including fats, oils, proteins, and mineral deposits. However, extremely stubborn or specific residues may require additional cleaning methods or specialized treatments.
Q7: How often should CIP be performed?
A7: The frequency of CIP depends on several factors, including the type of equipment, the nature of the product being processed, and industry regulations. Typically, CIP is performed after each production cycle or as recommended by industry standards to ensure optimal cleanliness and hygiene.
Q8: Are there any safety precautions to consider when using CIP cleaning agents?
A8: Yes, it is essential to follow safety guidelines and wear appropriate personal protective equipment (PPE) when handling CIP cleaning agents. These agents can be corrosive or hazardous if not used properly. Manufacturers’ instructions and safety data sheets should be consulted and followed at all times.
Q9: Can CIP be automated?
A9: Yes, CIP processes can be automated using specialized equipment and controls. Automation helps ensure consistency, accuracy, and efficiency in the cleaning process, minimizing the risk of human error.
Q10: Are there any environmental considerations with CIP?
A10: Yes, environmental considerations are crucial when using CIP. Efforts should be made to minimize water and chemical usage, properly dispose of wastewater, and adhere to environmental regulations and best practices to reduce the impact on the environment.
